High Strength Belt Vulcanizing Machine / Automatic Hot Vulcanizing Machine

Qingdao Leno Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

High Strength Belt Vulcanizing Machine / Automatic Hot Vulcanizing Machine

Brand Name : Leno

Model Number : ZLJ 1000mm*760mm

Certification : CE,ISO, SGS

Place of Origin : QIngdao City, China

MOQ : 1 Set

Price : negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 3-4 weeks

Packaging Details : Ply wooden box package for ship or air cargo

Name : belt vulcanizing machine

Pressure Creation : Pressure bag type

Cooling : Heating platen copper pipe build-in in quick water or water Cooling

Heating method : Silicone flexible heating element by electric

Plug : Flat

Bias angle : 90 degree

Heating Platen Size : 7600mm×1150mm

Heating Element : Flexible silicone, light model

Power : 12 kw

Voltage : 380 Volt 3 Phase

Max pressure : 1.8 Mpa

Control Monitor : Automatic Control Box

Curing temerature : 145 degree

Heating up time : 20 minute

Contact Now

1200mm rectangle pressure bag used conveyor belt splicing equipment with automatic control box working for Thailand

Product description

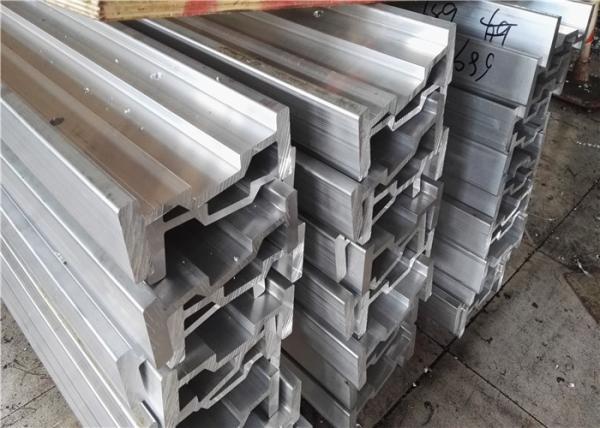

EA rod conveyor vulcanizing machine adopts automatic control box function to control the normal and efficient operation of the machine. The machine adopts high-strength aluminum alloy bridge and specially designed cooling system with built-in pressure plate design to ensure the efficient operation of the machine in working condition. Under, mechanical safety and stability.

Product specifications

EA strip conveyor vulcanizing machine is suitable for 220V/380V/415V/525V/660V and other voltage environments. Water cooling device is used in the process. The average temperature is 5 minutes. The temperature of the product is at the right temperature. In the process, the long-term high-speed operation of the machine is guaranteed.

Specifications of Leno Brand Belt Joint Vulcanizing Machine:

High Strength Belt Vulcanizing Machine / Automatic Hot Vulcanizing Machine

A=length of platen along the belt

B=width of platen across the belt on the bias

C=Right angle dimension across the belt, plus edge overlap.

D=Bias angle (0°/18°/20°/22°…..ect)

E=Max Splice length

Specifications of ZLJ series Belt Joint Vulcanizing Machine D=22 degree
Model
Number
Max Belt width(mm)

Max Splice Length
Width

E(mm)

Press Dimensions Power
(kw)
Weight(kg)
A(mm) C(mm) B(mm) External dimension (LxWxH)(mm)
ZLJ-650 650 500 535 790 870 1080x730x630 6.1 280
650 670 707 790 870 1080x900x630 8.2 300
650 750 790 790 870 1080x980x630 9.1 320
650 830 872 790 870 1080x1050x630 10.1 380
650 1000 1045 790 870 1080x1220x630 12.2 410
ZLJ-800 800 500 535 940 1020 1280x730x630 7.1 380
800 670 707 940 1020 1280x900x630 9.6 410
800 750 790 940 1020 1280x980x630 10.7 420
800 830 872 940 1020 1280x1050x630 11.9 460
800 1000 1045 940 1020 1280x1220x630 14.3 490
ZLJ-1000 1000 500 535 1140 1220 1480x730x630 8.5 420
1000 670 707 1140 1220 1480x900x630 11.4 500
1000 750 790 1140 1220 1480x980x630 12.8 520
1000 830 872 1140 1220 1480x1050x630 14.2 550
1000 1000 1045 1140 1220 1480x1220x630 17.1 590
ZLJ-1200 1200 500 535 1340 1420 1680x730x630 9.9 510
1200 670 707 1340 1420 1680x900x630 13.3 550
1200 750 790 1340 1420 1680x980x630 14.9 590
1200 830 872 1340 1420 1680x1050x630 16.5 610
1200 1000 1045 1340 1420 1680x1220x630 19.1 650
ZLJ-1400 1400 500 535 1540 1620 1880x730x730 11.3 690
1400 670 707 1540 1620 1880x900x730 15.2 720
1400 750 790 1540 1620 1880x980x730 17.0 750
1400 830 872 1540 1620 1880x1050x730 18.8 780
1400 1000 1045 1540 1620 1880x1220x730 22.7 850
ZLJ-1600 1600 500 535 1740 1820 2080x730x730 12.7 830
1600 670 707 1740 1820 2080x900x730 17.1 880
1600 750 790 1740 1820 2080x980x730 19.1 920
1600 830 872 1740 1820 2080x1050x730 21.2 940
1600 1000 1045 1740 1820 2080x1220x730 25.5 1010
ZLJ-1800 1800 500 535 1940 2020 2280x730x730 14.1 880
1800 670 707 1940 2020 2280x900x730 19.0 920
1800 750 790 1940 2020 2280x980x730 21.2 950
1800 830 872 1940 2020 2280x1050x730 23.5 1050
1800 1000 1045 1940 2020 2280x1220x730 28.3 1150
ZLJ-2000 2000 500 535 2140 2220 2480x730x820 15.5 920
2000 670 707 2140 2220 2480x900x820 20.8 1060
2000 750 790 2140 2220 2480x980x820 23.3 1130
2000 830 872 2140 2220 2480x1050x820 25.8 1240
2000 1000 1045 2140 2220 2480x1220x820 31.1 1370
ZLJ-2200 2200 500 535 2340 2420 2680x730x820 16.9 1020
2200 670 707 2340 2420 2680x900x820 22.7 1190
2200 750 790 2340 2420 2680x980x820 25.4 1310
2200 830 872 2340 2420 2680x1050x820 28.1 1460
2200 1000 1045 2340 2420 2680x1220x820 33.9 1590

Applications

Conveying vulcanizer is mainly used for durable conveyor belts
Automatic control box conveying vulcanizing machine is mainly used for explosion-proof belt conveyor
Conveyor belt vulcanizing machine main y steel plant conveyor belt heat vulcanization...
Water-cooled vulcanizer coal mine conveyor belt transmission

Product advantages

1 The vulcanizer uses a water-cooled control system to ensure stable and efficient operation of the vulcanizer

2 The water-cooling vulcanizer adopts an automatic control box to ensure the system operation of the product.

3 E-beam heavy-duty segment conveyor belt vulcanizer platens can be rectangular or parallelogram and can be connected to other platens for scalability
